Portable STS Rotary Die Cutter

Exit Side - Left Hand STS Die Cutter
Exit Side - Left Hand
STS Die Cutter


Entry Side - Left Hand STS Die Cutter
Entry Side - Left Hand STS
Die Cutter


Exit Side - Right Hand  STS  Portable Die Cutter
Exit Side - Right Hand STS
Portable Die Cutter

Entry Side - Right Hand  STS  Portable Die Cutter
Entry Side - Right Hand STS
Portable Die Cutter

Introduction:

The GWF STS Rotary Die Cutter is designed to produce contour cut products such as envelope windows, cut outs for direct mail pieces, and precision ‘kiss cuts' for pressure sensitive labels. This unit can be installed after the chills before a folder or a sheeter, it can be stationary or mobile for multiple press lines locations.


Key Features:

  • Heavy-duty steel side frames
  • Both anvil cylinder and die cylinder are single press repeat.

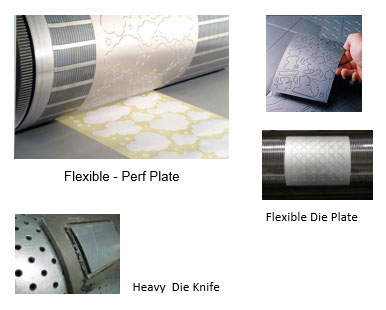

  • Die cylinder has lifetime magnets imbedded into a ceramic surface over a stainless steel base
  • The Magnetic die cylinder is undercut to customer specification to accept chemically etched dies
  • Die cylinder is also available in honey comb design to support heavy dies
  • Chrome plated anvil cylinder, heat treated and finished machined with .0005” TIR
  • Thermo-stabilization system to maintain a constant temperature
  • Centralized lubrication system
  • Low maintenance design
  • Non-driven bypass idler rolls
  • Remote control box motorized movements
  • Integrated DMR Automatic Cut-off  Register Control
  • HMI operator touch screen panel
  • Casters for portability
  • VPN Ethernet Connection
  • CE conformity

Product Applications:

  • Envelope windows
  • Customized cut outs
  • “Kiss cuts” for labels
  • Pop-Ups

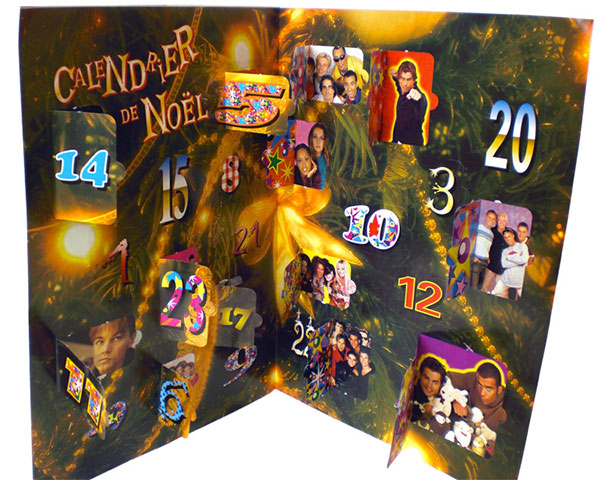

Unique Die Cuts

Unique die cuts such as contour cuts, odd-shape windows and pull tabs. Windows die- cuts entice the consumer to discover what is inside, Pull-Tabs heighten the consumer’s anticipation & involvement.

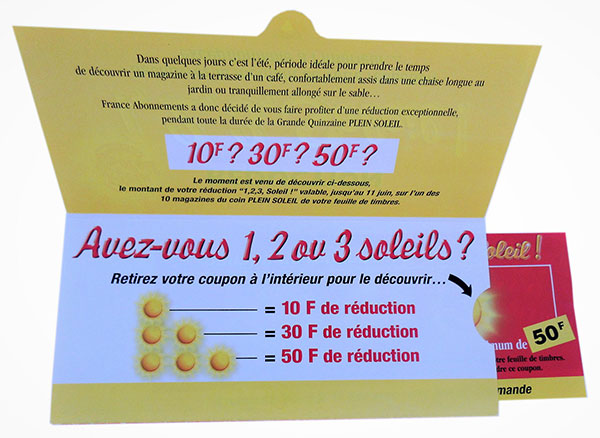

Pull Tabs

Pull Tabs

Pull Tabs

Pull Tabs

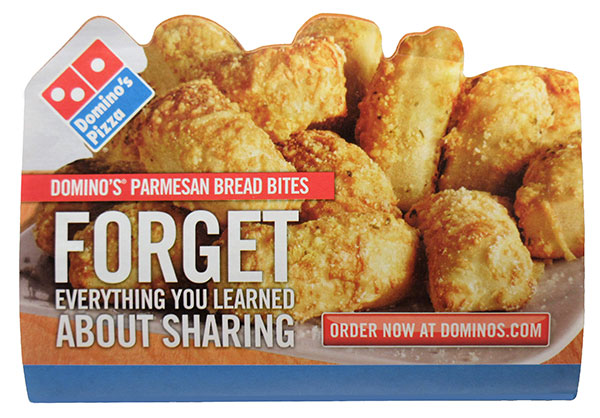

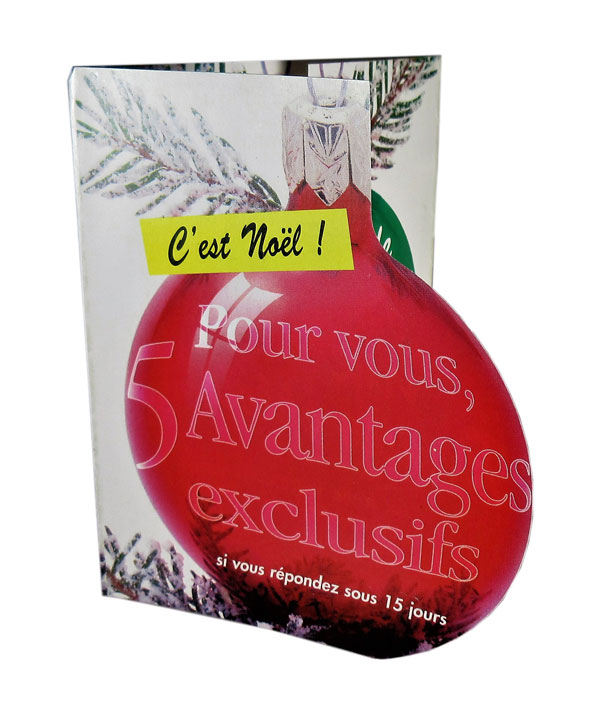

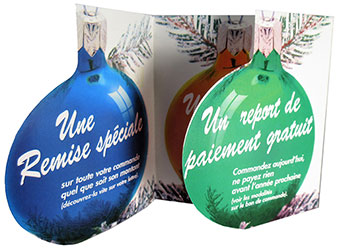

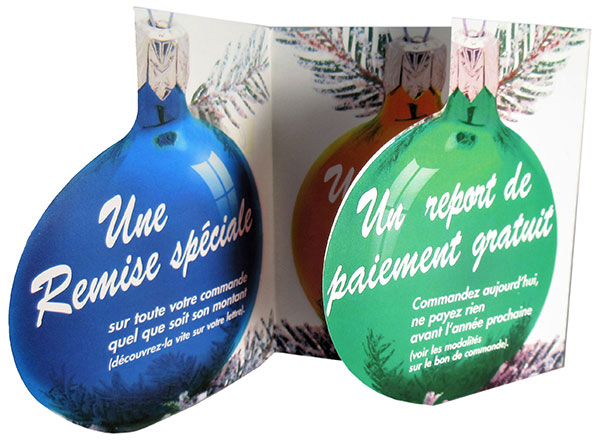

Multiple Die Shapes

Multiple Die Shapes

Multiple Die Shapes

Multiple Die Shapes

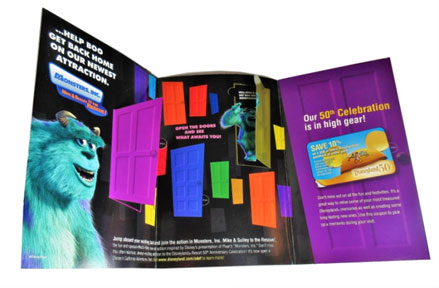

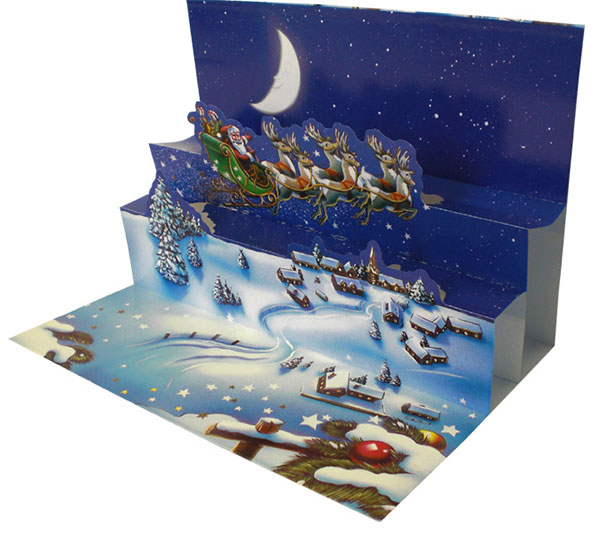

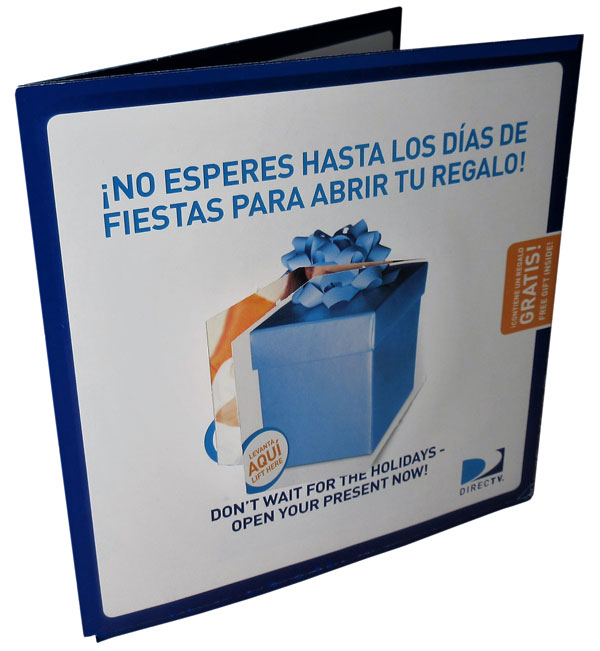

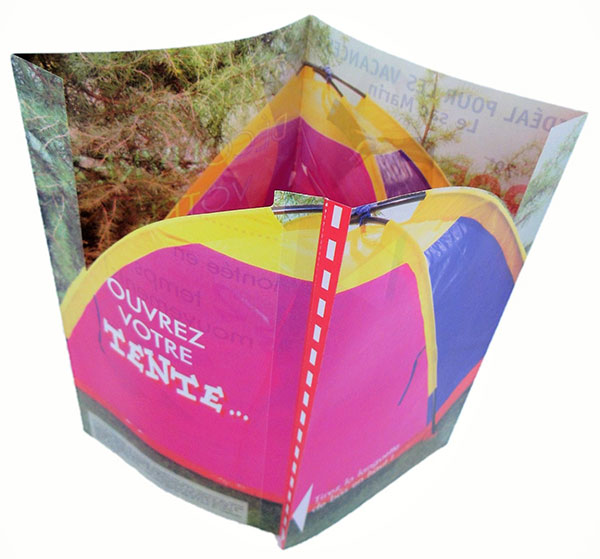

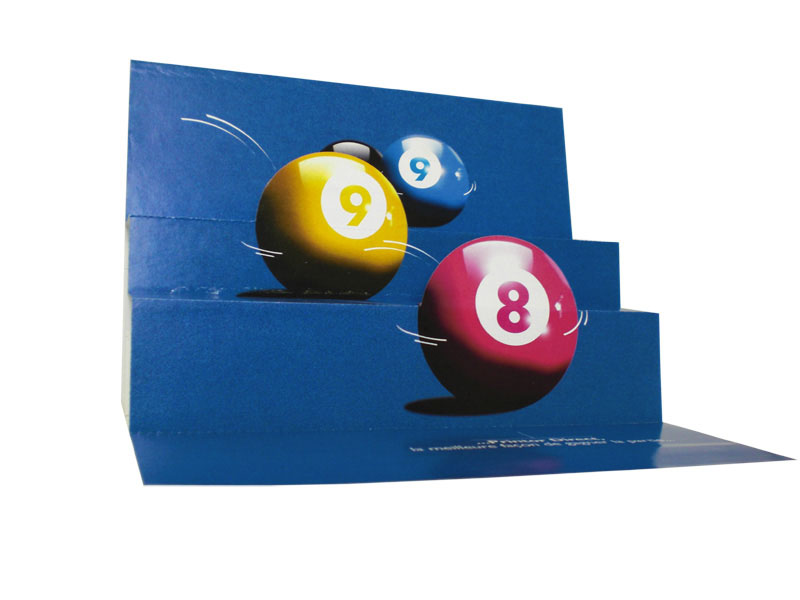

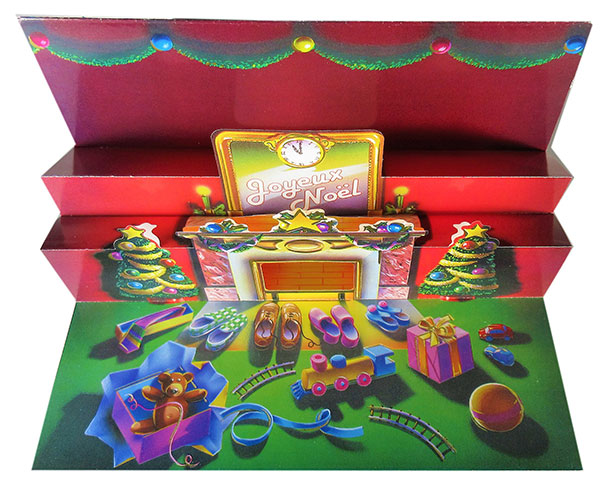

3D Pop Ups

"3-D die cut shape", shape that moves or pops up whether consumer opens the piece. These products can be created as mailers and personalized on the In-line so the piece is ready to mail at the end of the press.

3D-Pop Ups

3D-Pop Ups

3D-Pop Ups

3D-Pop Ups
